How to create your On-Premises Archive in Commnia

How to create your On-Premises Archive

Your project is finished, but its records still matter: for defects, disputes and audits. An On-Premises Archive gives you your own read-only copy of the whole project, to look through any time.

It looks and works like Commnia. Open the Document Register, Drive, Photos, Inbox, Site Diary and Site Manager, module by module. It lives in your Dropbox, and nobody needs a Commnia login or subscription to read it.

Not sure it's the right option? See Project Aftercare to compare it with keeping the project in Commnia.

What your archive looks like

Before you start

  • You need to be a System Administrator in Commnia.
  • You need a paid Dropbox account. Free accounts don't have enough space.
  • Install the Dropbox app on your computer and sign in, so the archive syncs to your computer.
  • The project must be open in Commnia. If it's already in Retained or Deep Archive, contact us first.

Create your archive

1. Open the menu and go to Operations › Project Register.

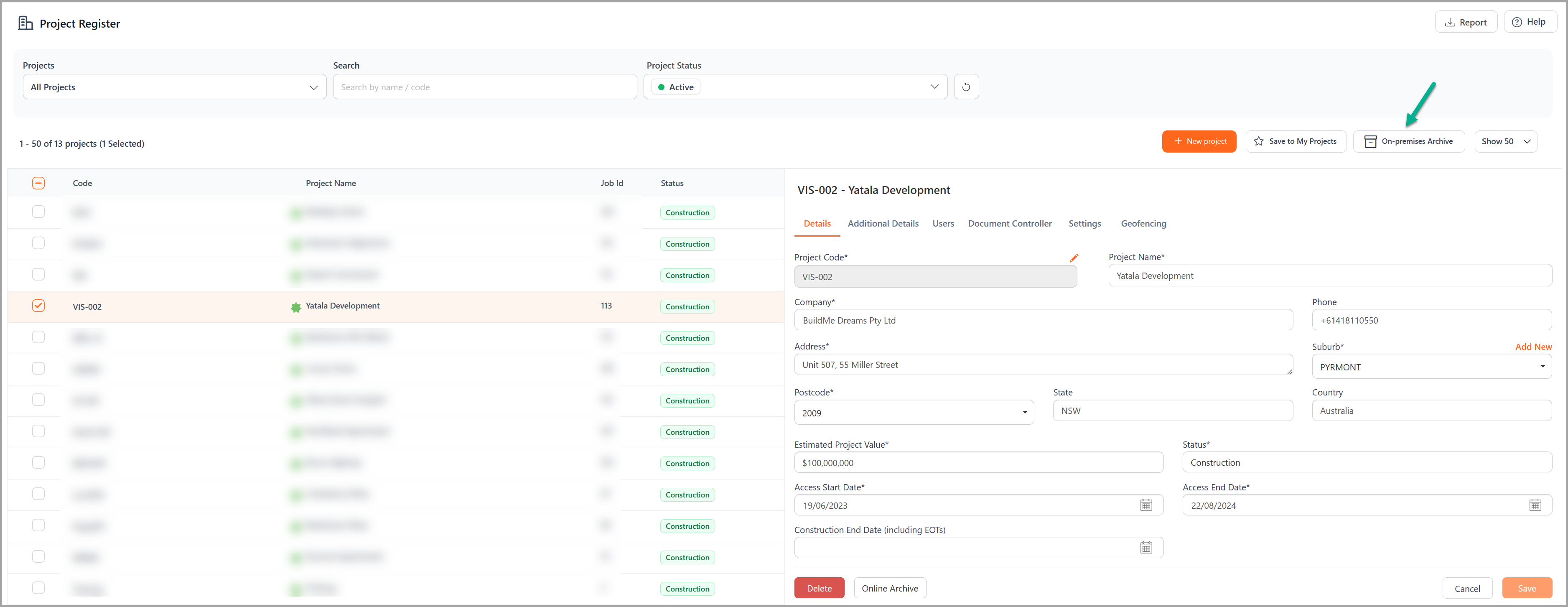

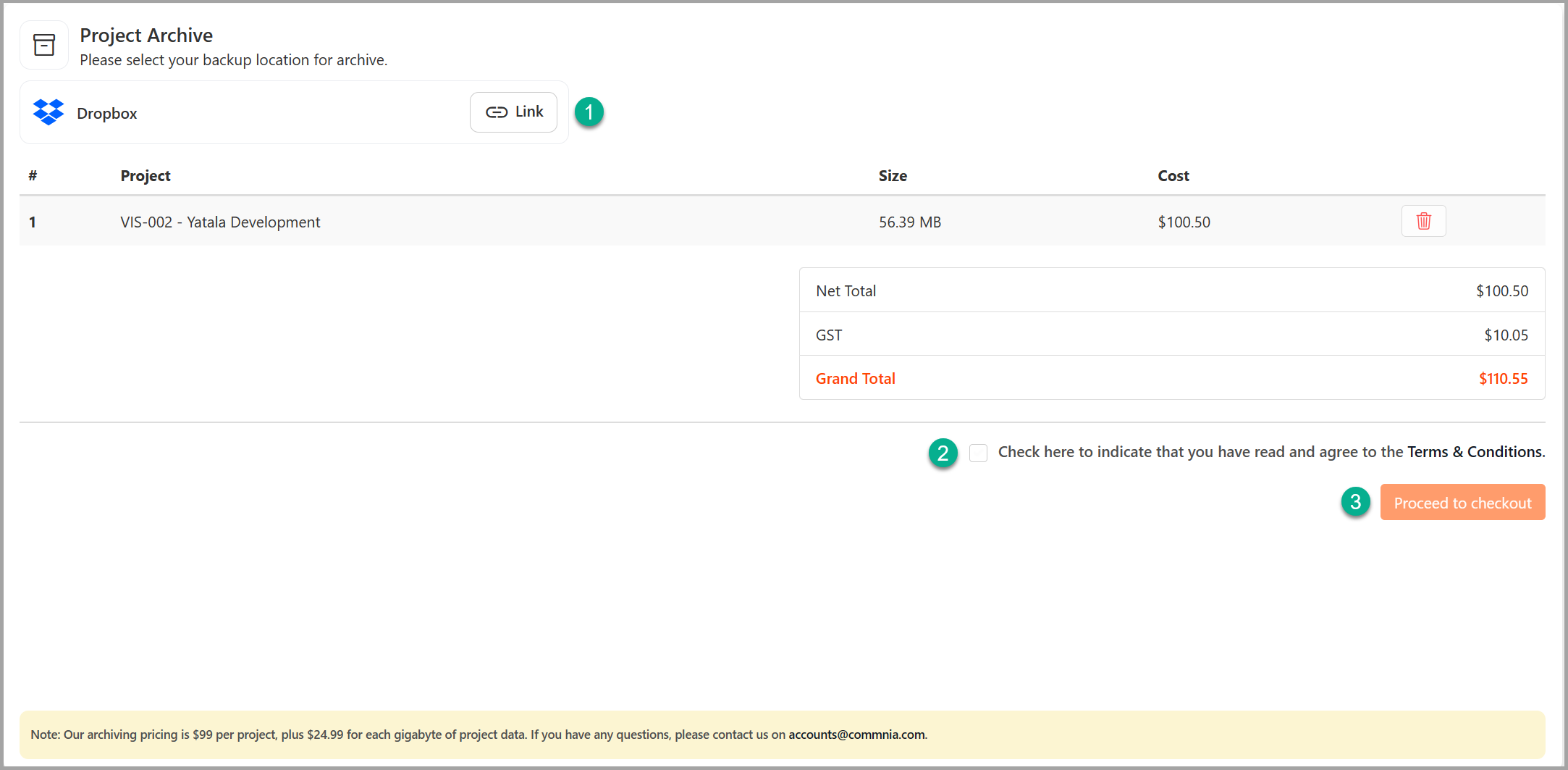

2. Tick the project, then click On-premises Archive.

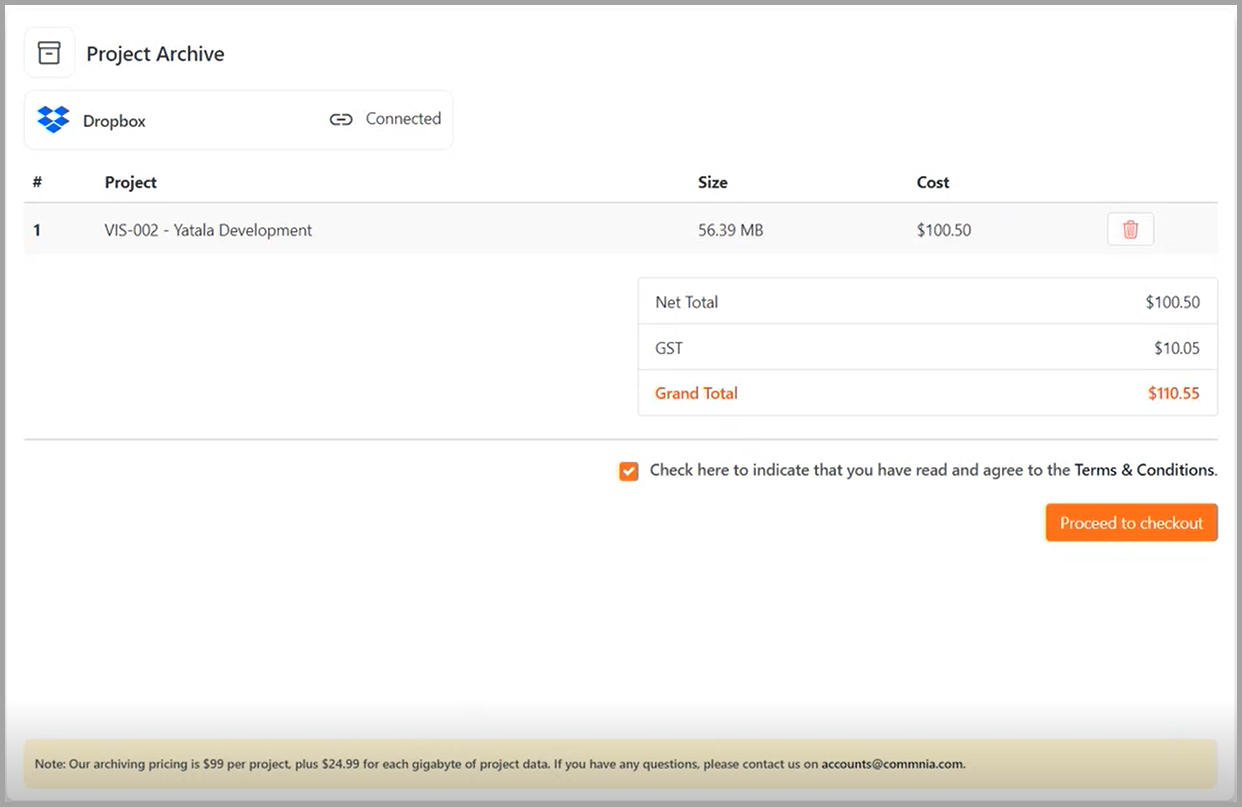

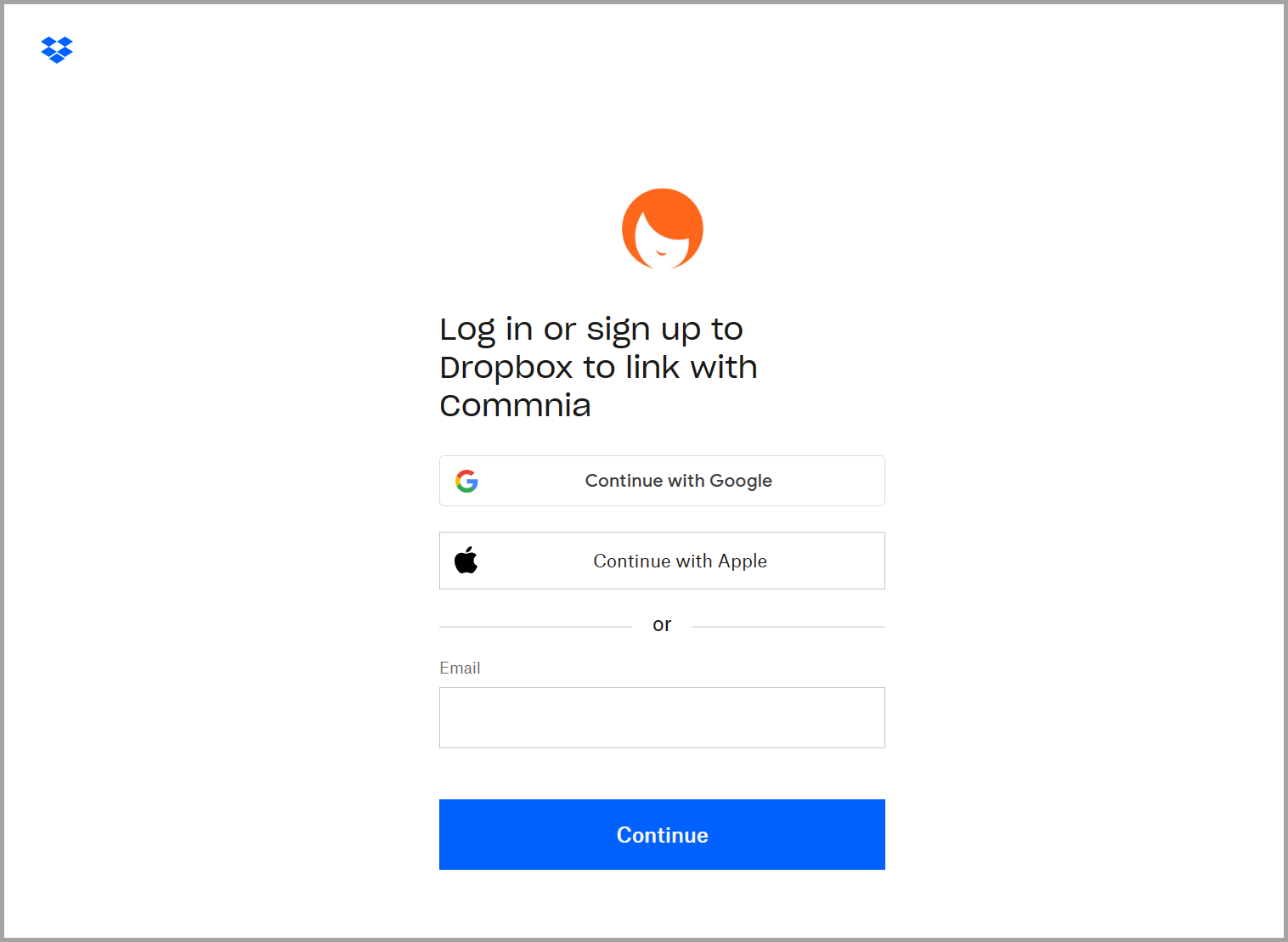

3. Click Link to Dropbox, sign in to Dropbox and allow Commnia to connect. The link changes to Connected.

4. Tick to accept the Terms & Conditions, then click Proceed to checkout.

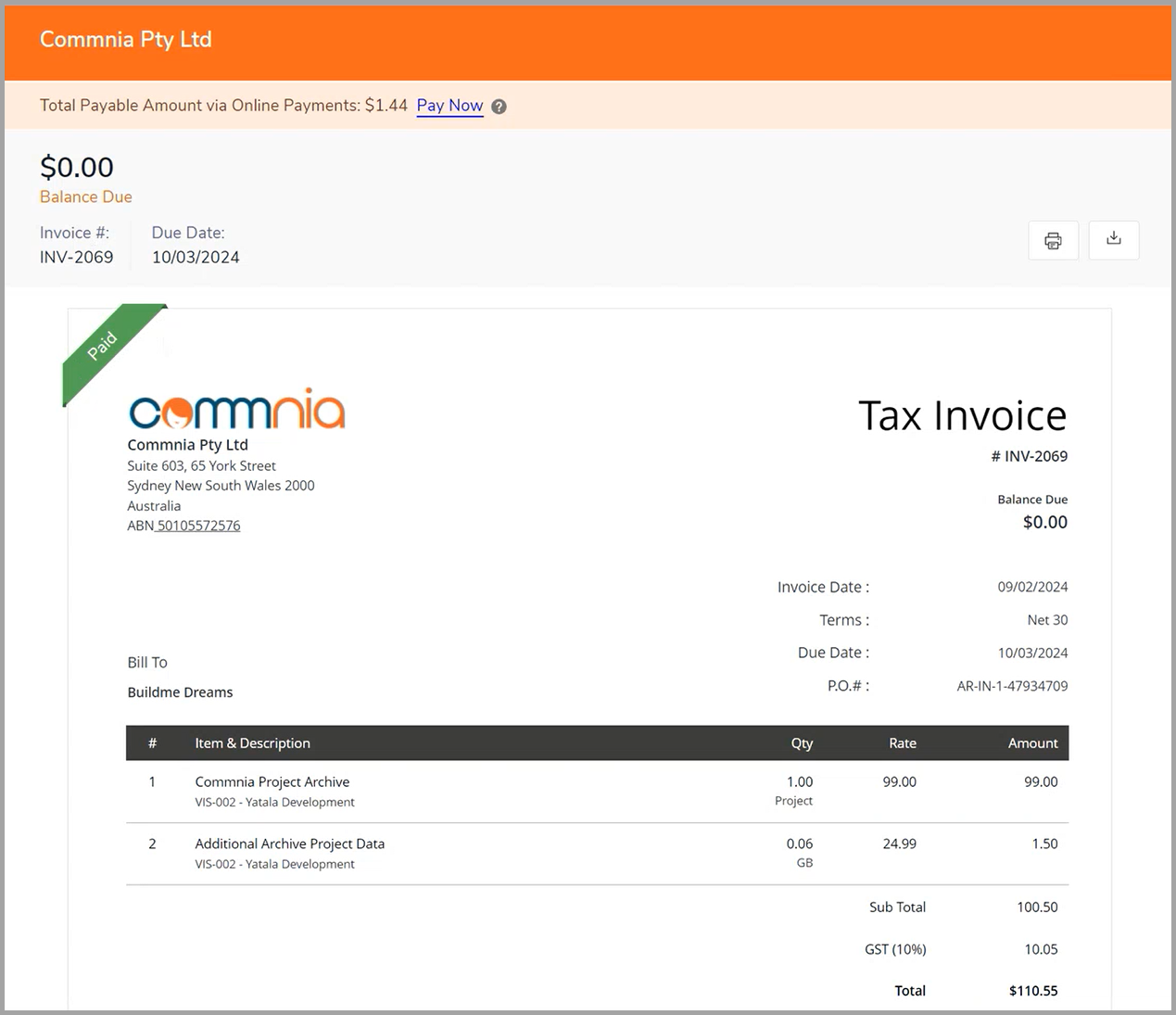

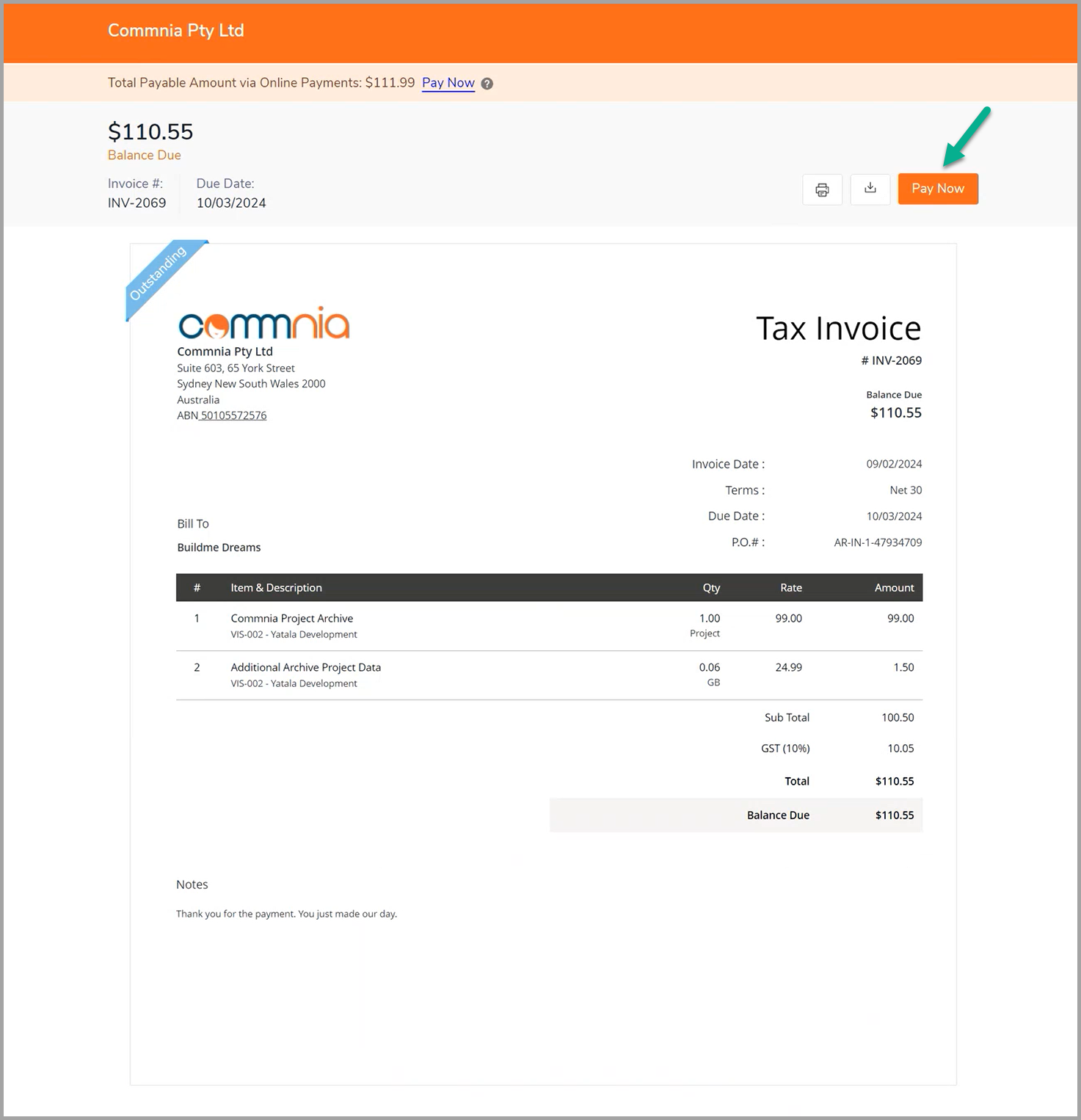

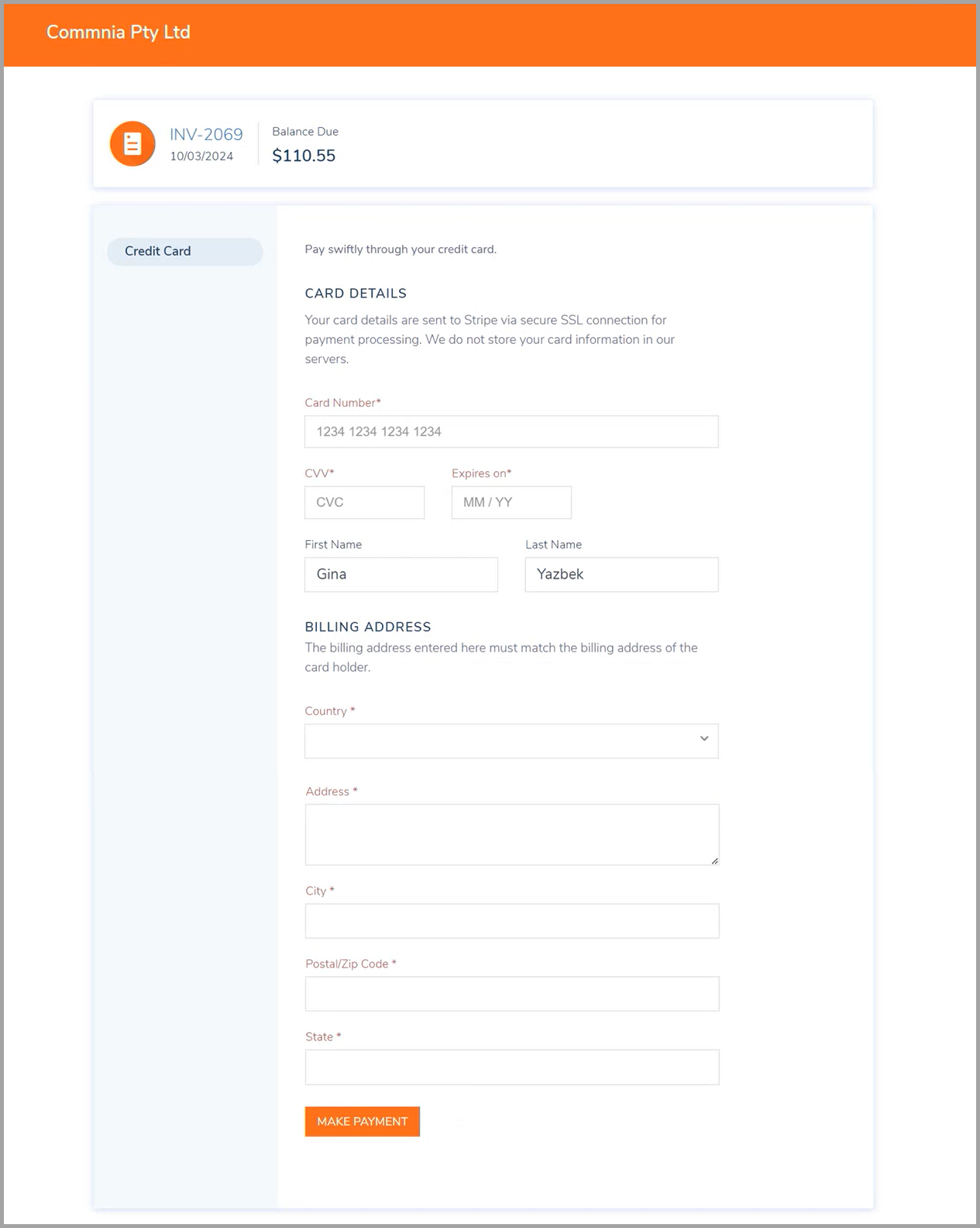

5. Pay the invoice by card (Pay Now) or by bank transfer. Card payments go through Stripe; we never store your card details.

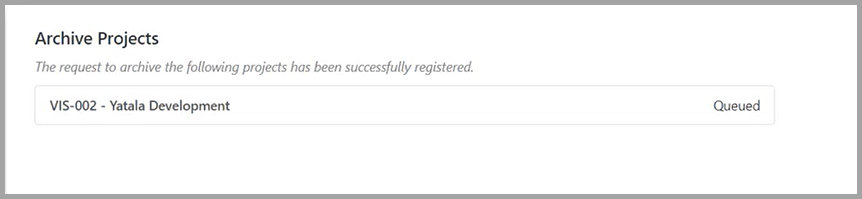

6. The project now shows as Queued. You can close Commnia: the copy runs in the background.

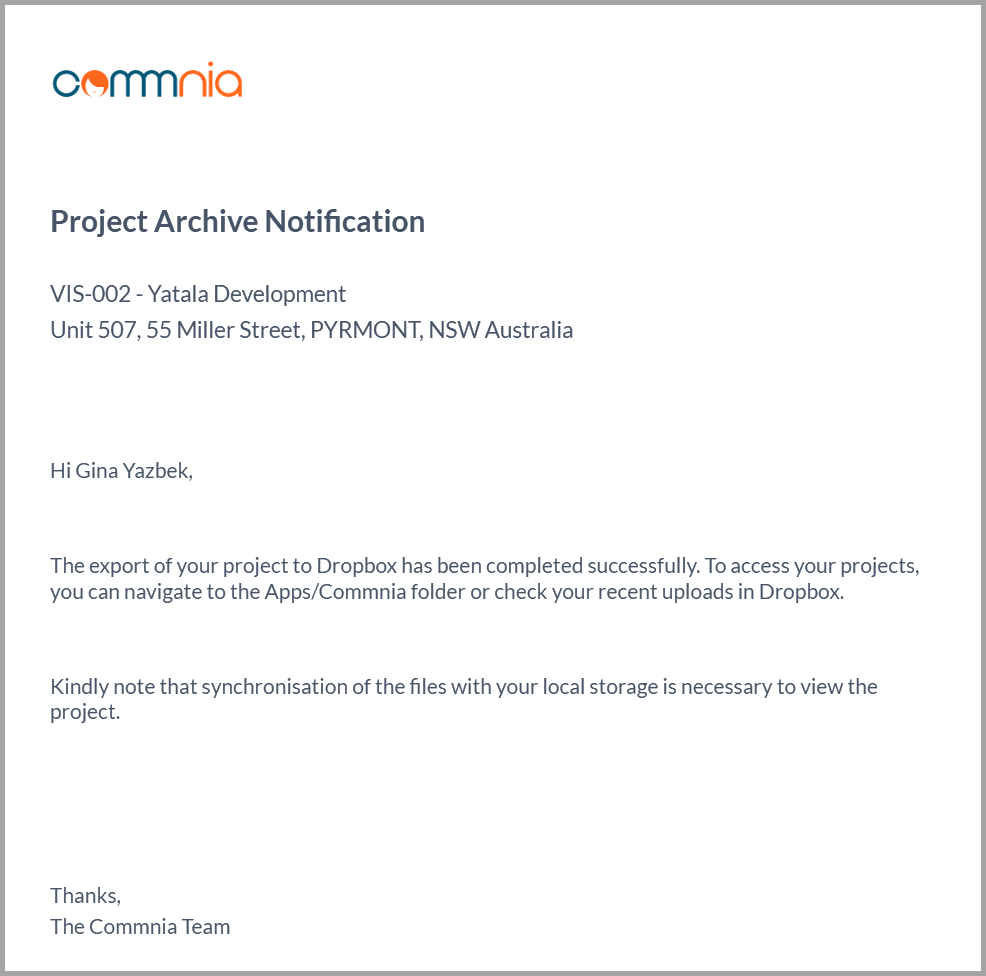

7. We email you when your archive is ready. How long it takes depends on the size of the project.

Open your archive

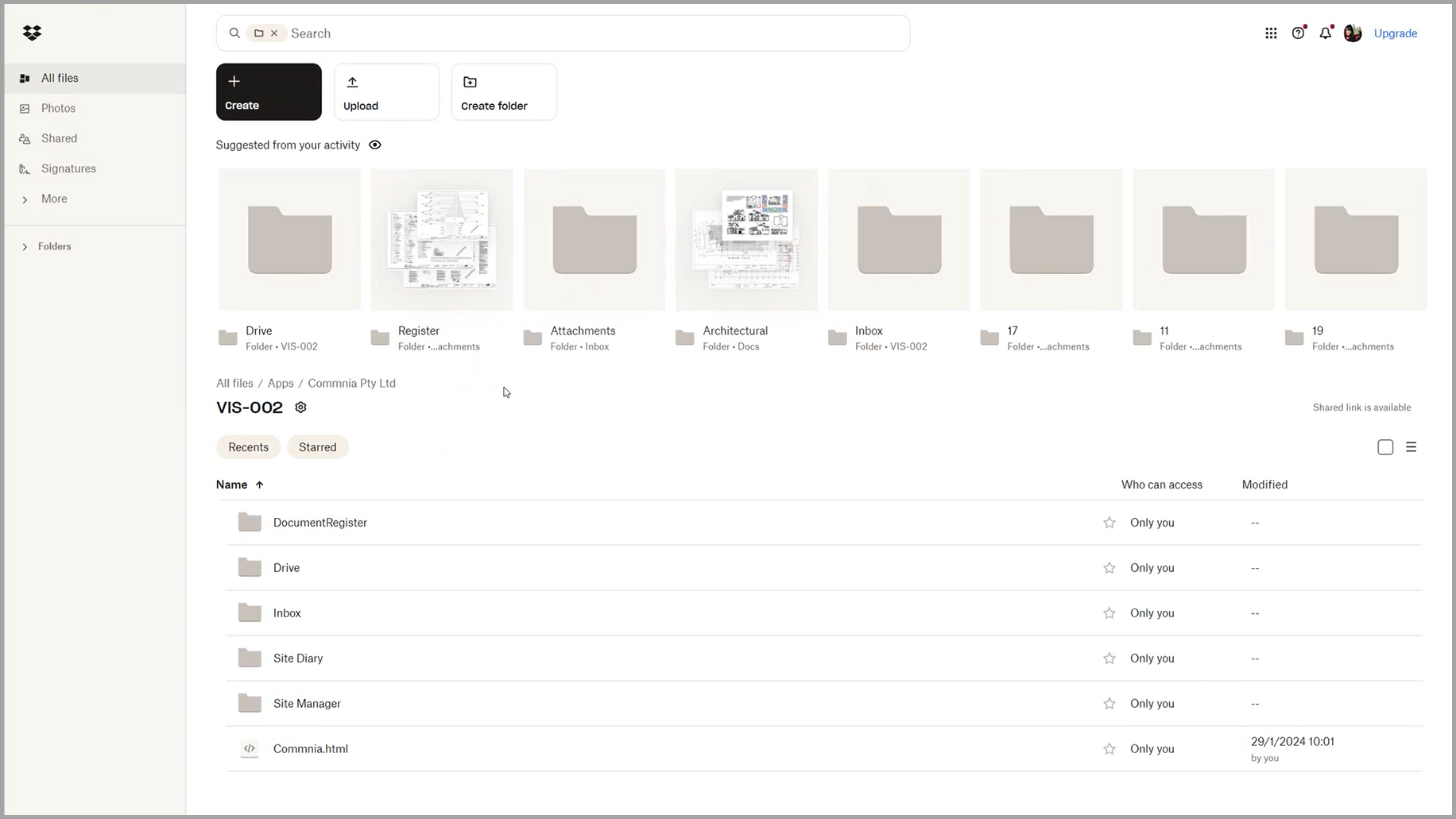

1. Make sure the archive is on your computer. Open your Dropbox folder, go to Apps › Commnia Pty Ltd and wait for Dropbox to finish syncing. If you downloaded the archive as a zip file, unzip it first. How to sync Dropbox to your computer

2. Open the project's folder and double-click Commnia.html. It opens in your web browser. Pick a module from the menu along the top, just like in Commnia.

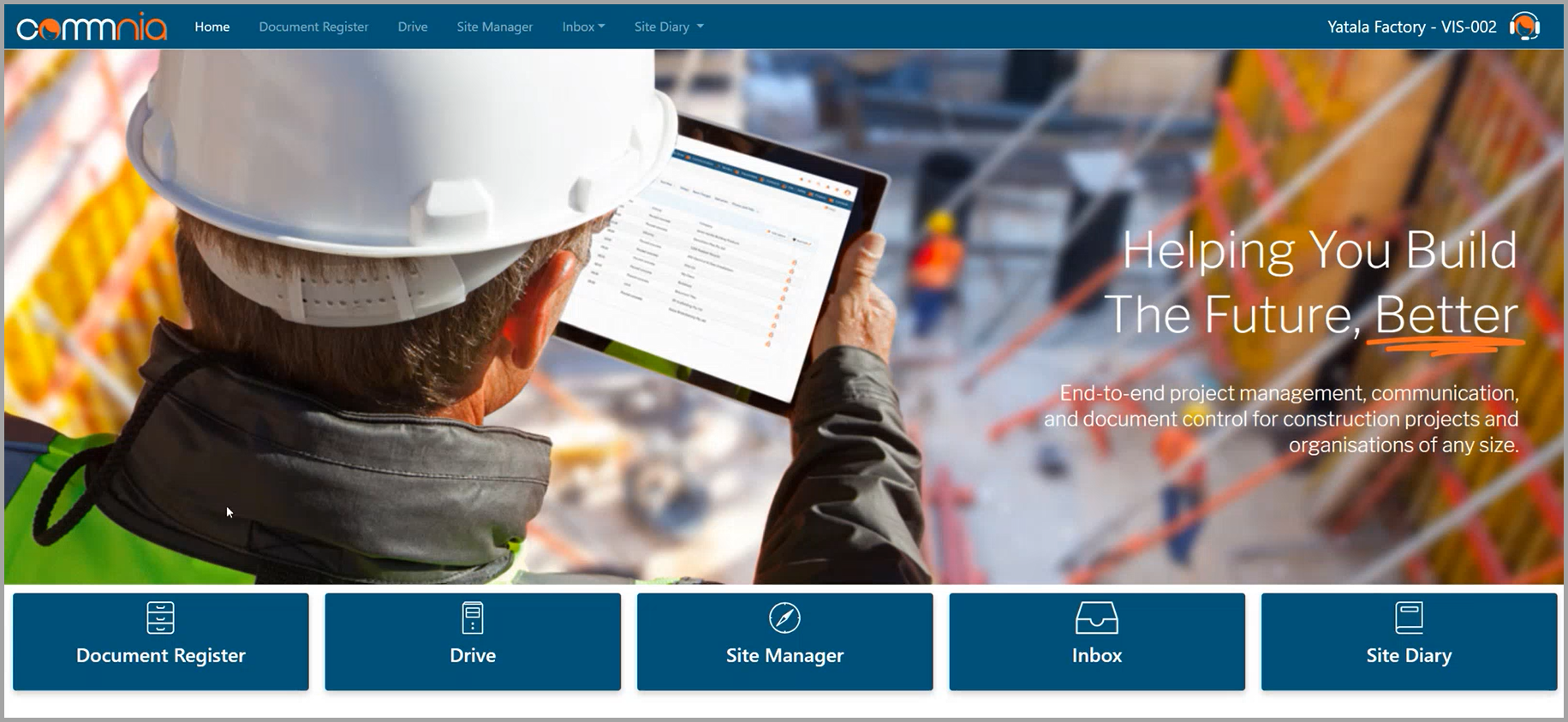

The archive home page with the project modules

The Dropbox website can't open your archive. Always open it from the folder on your computer.

Viewing your Outlook emails

Emails imported from your Outlook folders into Commnia are in the Outlook Email module. When the archive is opened by double-clicking, your browser won't show these emails inside the window. You have two options.

An Outlook email open in the archive, with the Download email button

Option 1: View the emails in the archive window

Open the archive through Simple Web Server, a small free app. Every module then works in the window, including Outlook emails.

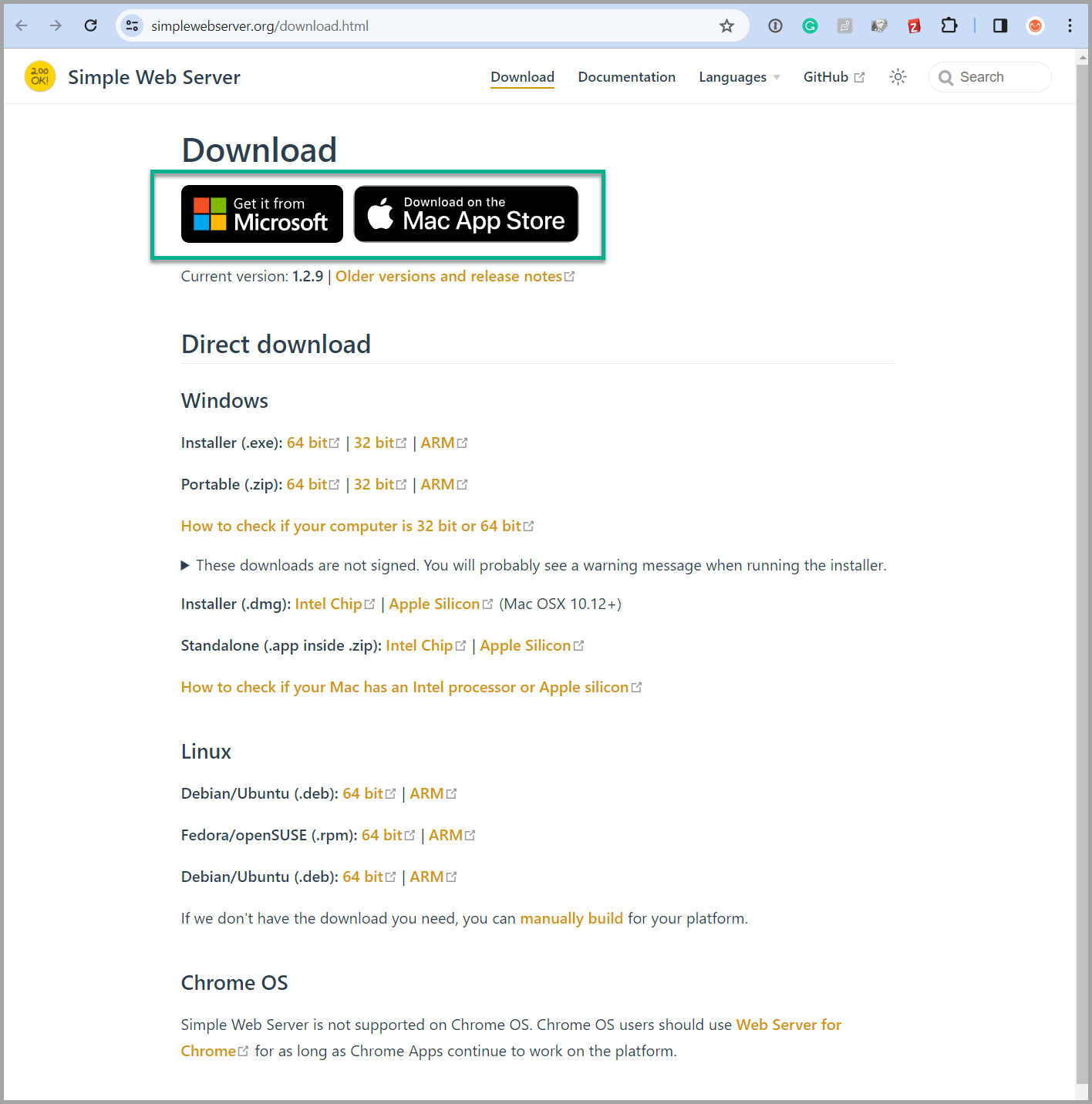

1. Download Simple Web Server and choose the version for your computer (Windows or Mac).

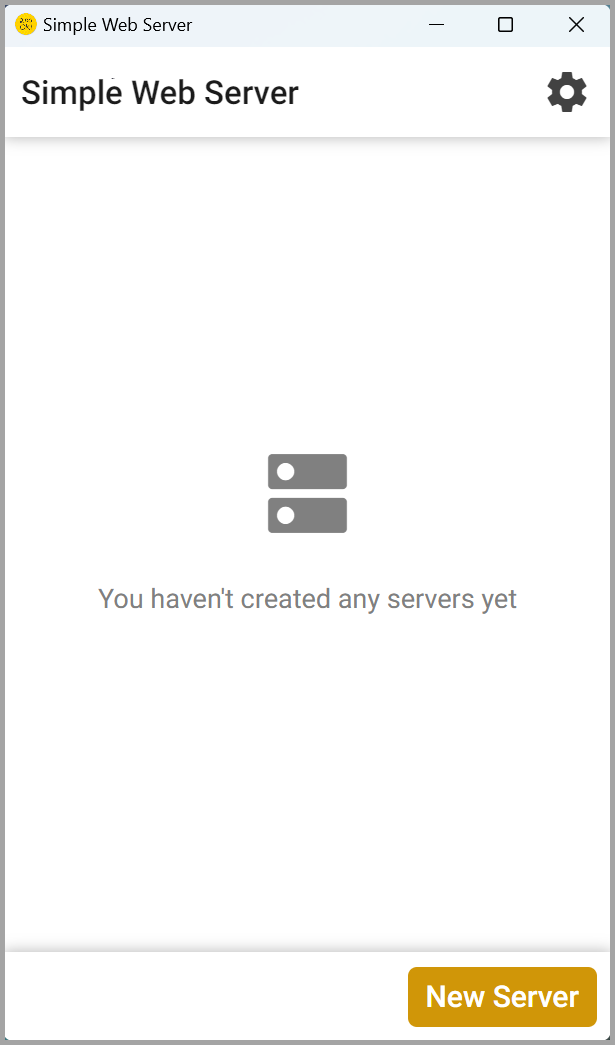

2. Open Simple Web Server and click New Server.

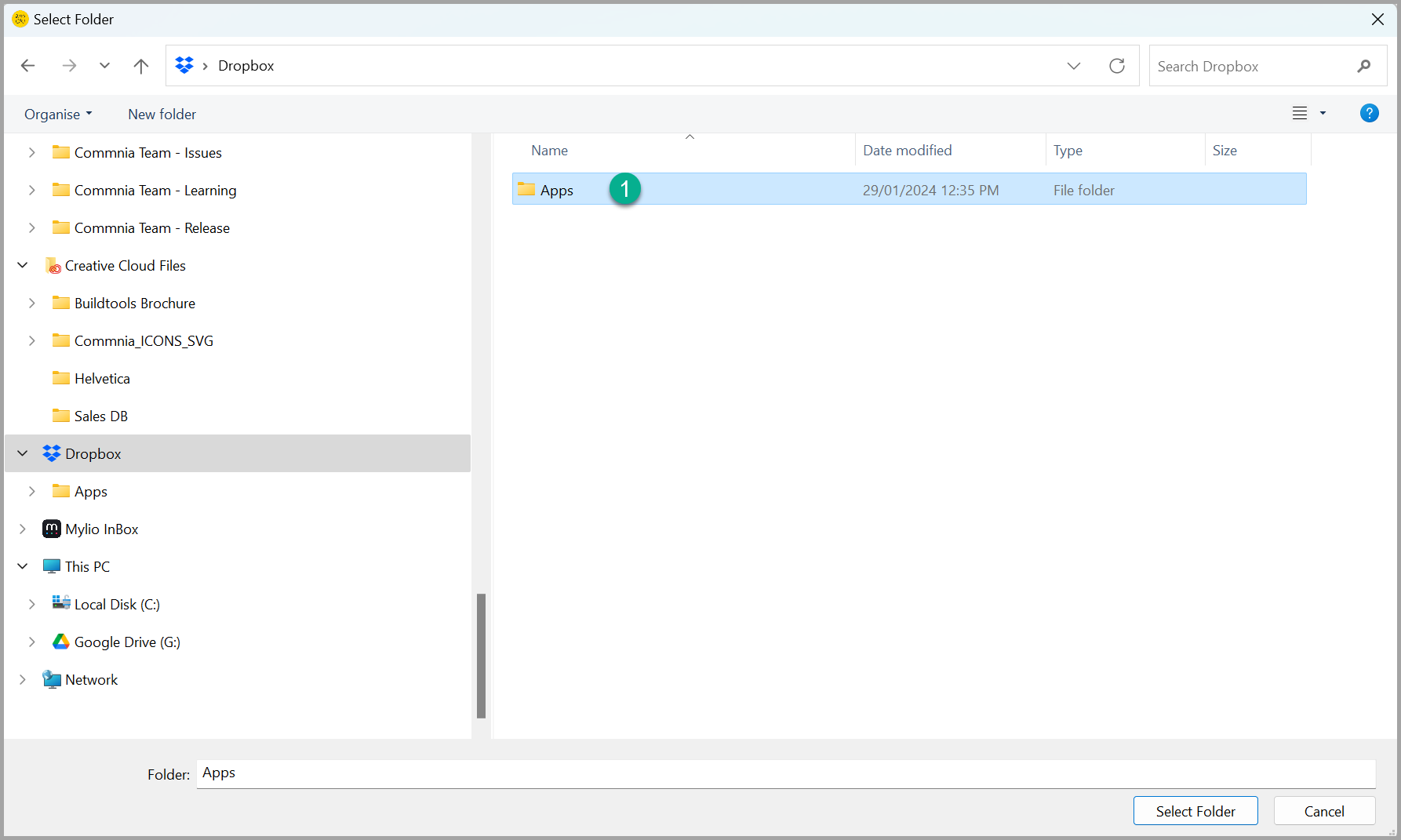

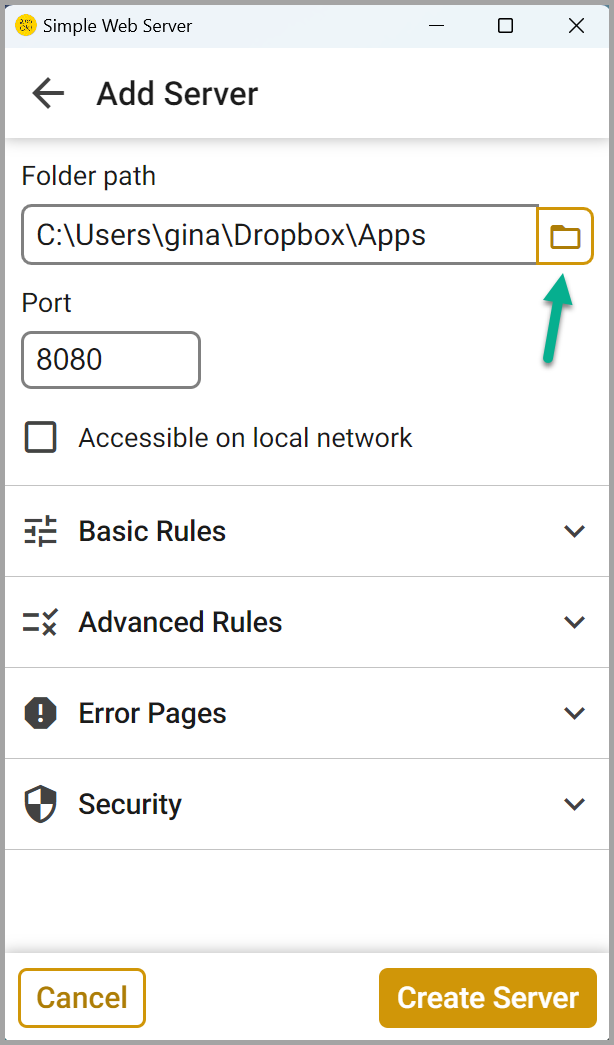

3. Click the folder icon next to Folder path, then choose Apps › Commnia Pty Ltd in your Dropbox folder (or the folder you unzipped).

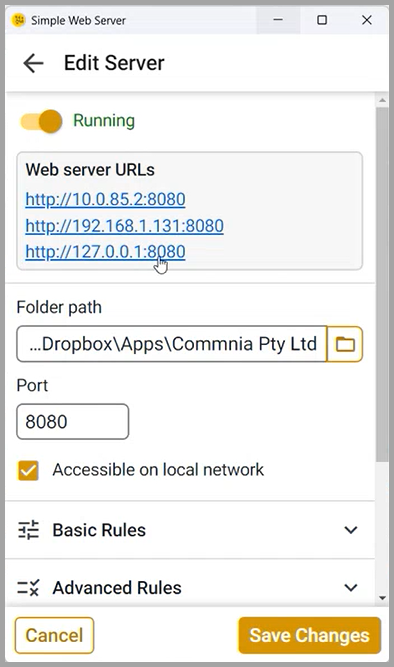

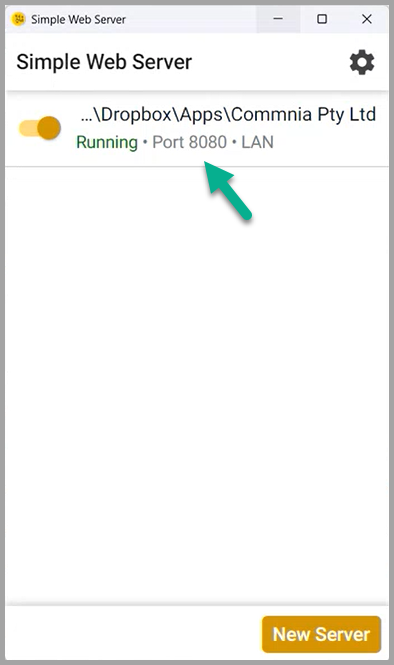

4. Check the server shows Running, then click one of the web server addresses.

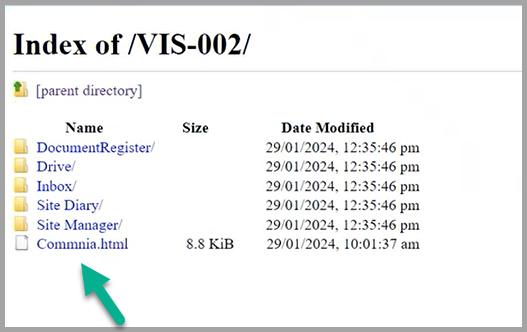

5. Click Commnia.html, open Outlook Email and select an email (1). It opens in the window.

Option 2: Download the email

Select the email, then click Download email (2). It saves as an Outlook message file you can open in Outlook. Original message file does the same with the file exactly as it was imported.

What happens to the project in Commnia?

Your archive is a copy, so the project stays in Commnia until you tell us what to do with it. Will you ever work on this project again in Commnia?

  • Yes, within 180 days: keep it in hot storage (Retained). You can get back in within seconds.
  • Yes, but later, or not sure: move it to cold storage (Deep Archive). It costs much less, and our team restores it when you need it.
  • No, never: we delete it. Your archive keeps every record.

Once your archive is ready, email support@commnia.com with your choice and we'll take care of it.

Look after your archive

  • At first, only the Dropbox account that created the archive can open it. After that, you can copy or share the folder: to OneDrive, SharePoint or your own server, or with owners, consultants or your lawyer.
  • Once it's with you, it's yours to look after. Keep a second backup, as you would any company records.
  • If you lose your copy and the project is still stored with Commnia, we can export it again. Fees apply.
