How to View Location associated with Documents & Drawings | Tablet
There are 2 ways to view location drawings by either navigating to QR Locations or the Document Register.
QR Location

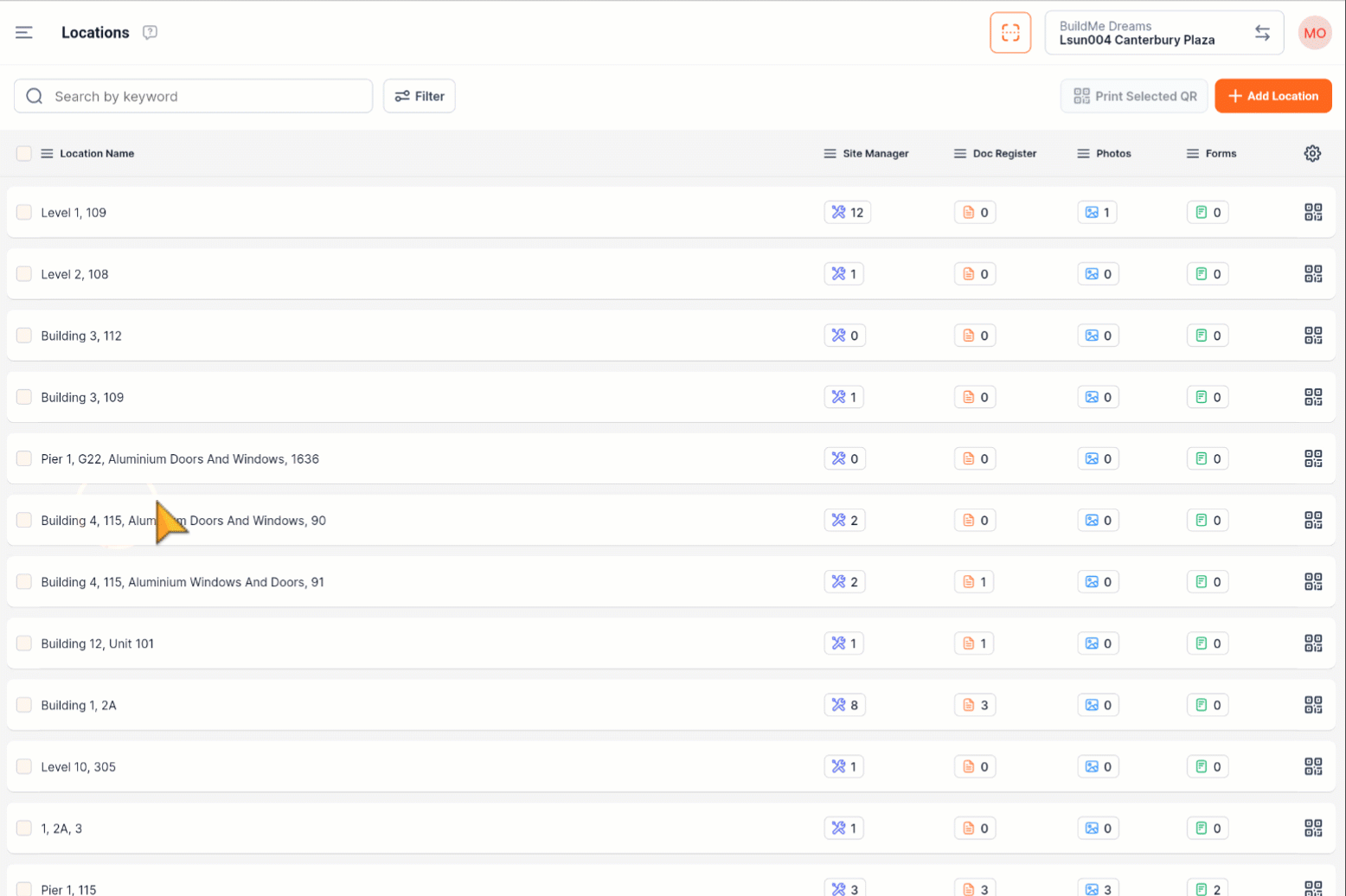

Navigate to the Main Menu and click QR Locations

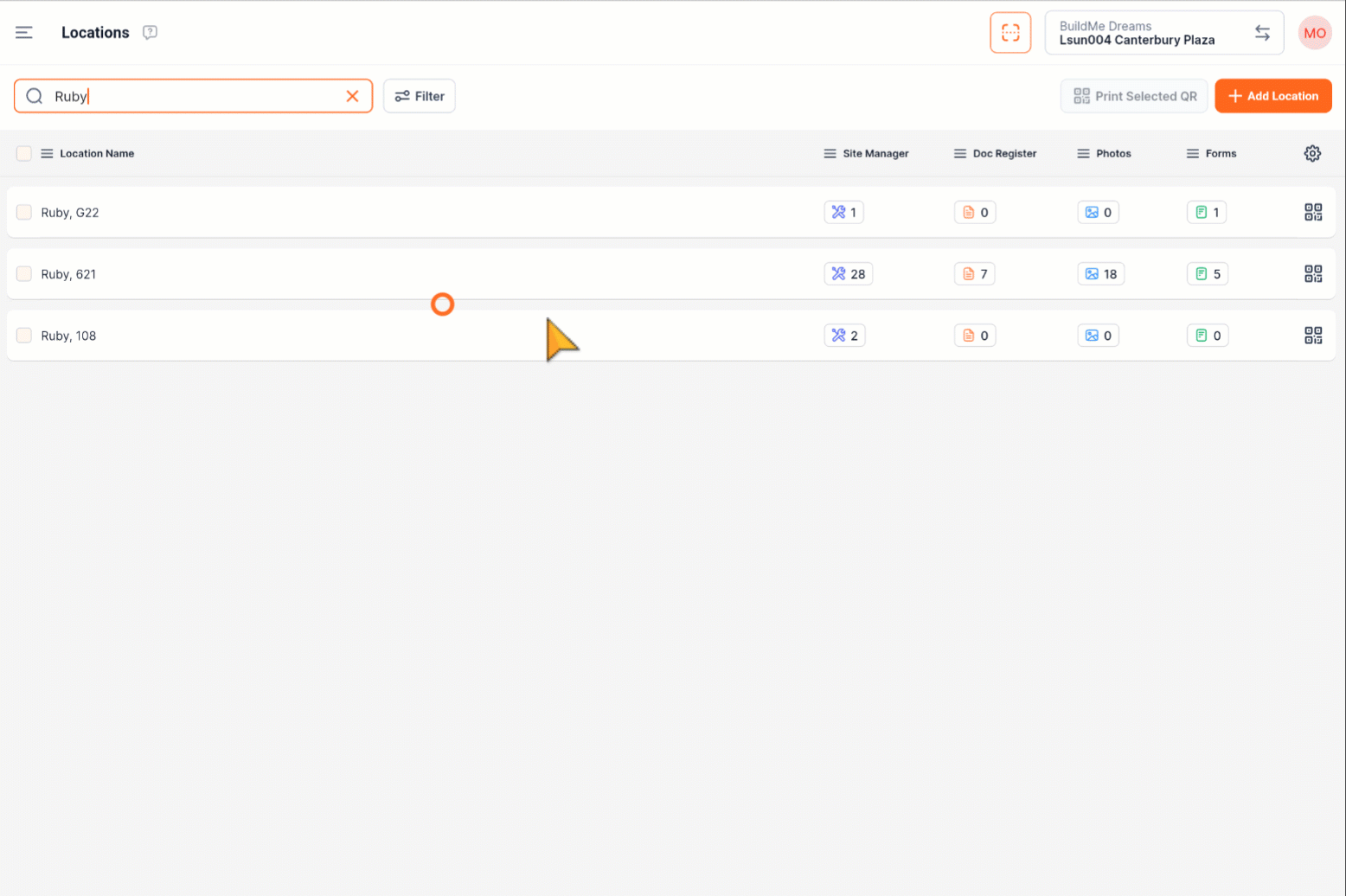

You can use the search function or filters to search for a specific location.
Click on the Document Icon column which opens up a submenu.
In this Submenu clicking on the arrow will take you to all Documents associated with that location.
In this Submenu clicking on the arrow will take you to all Documents associated with that location.
Document Register

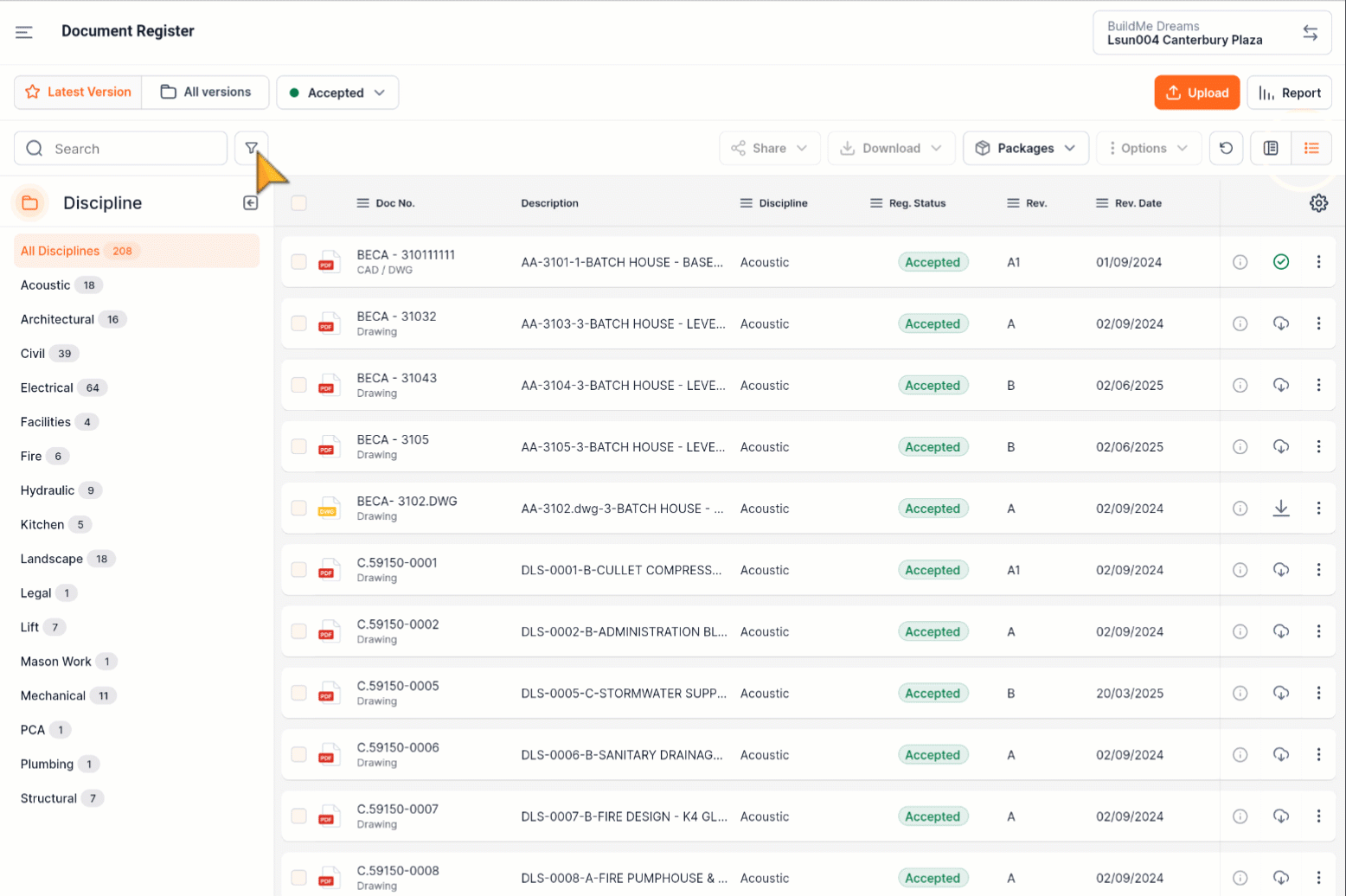

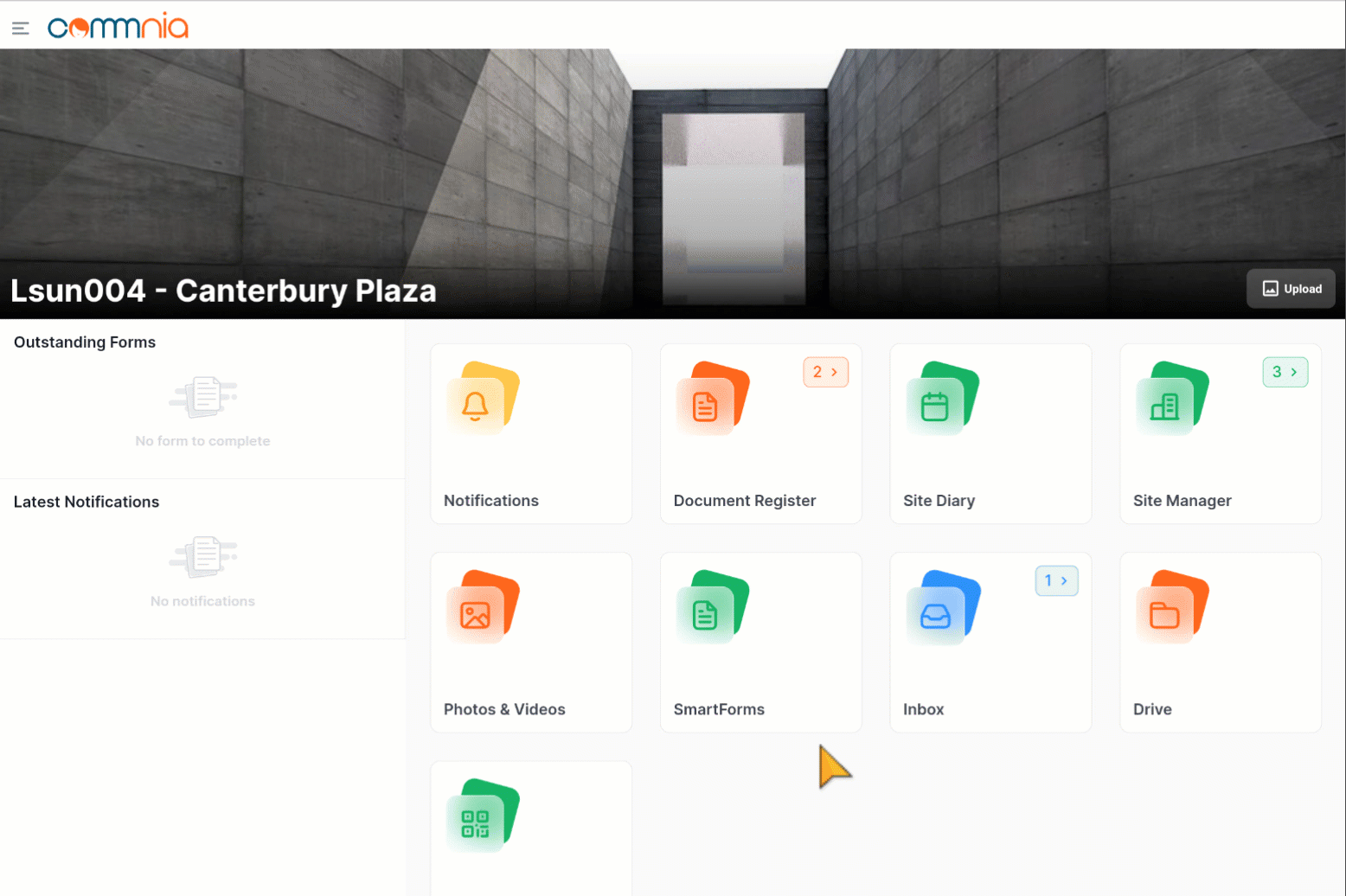

On the Home Screen click on Document Register

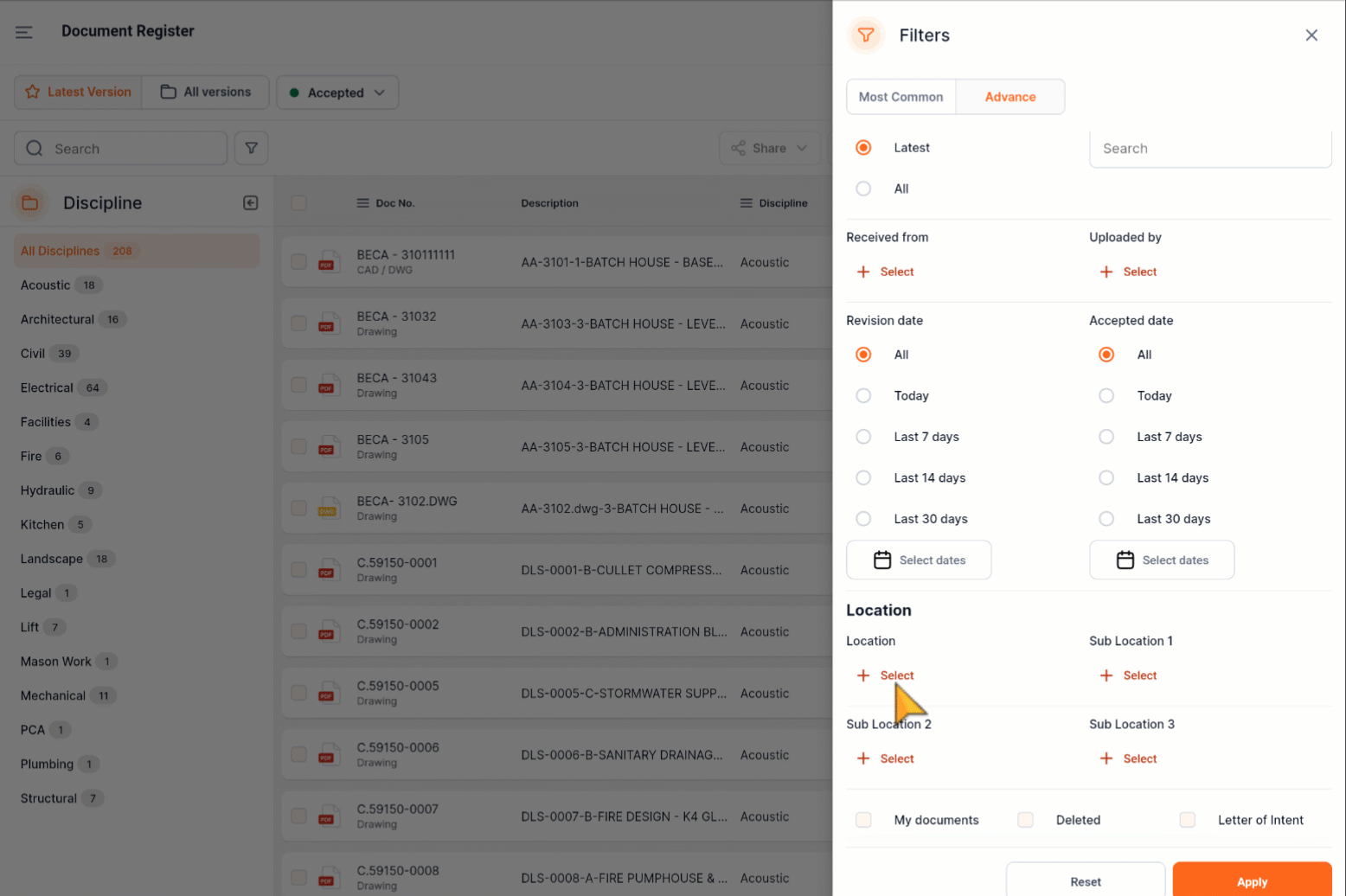

Click on the Filter icon and Advanced tab.
Enter your desired locations from the dropdown menu and click Apply.

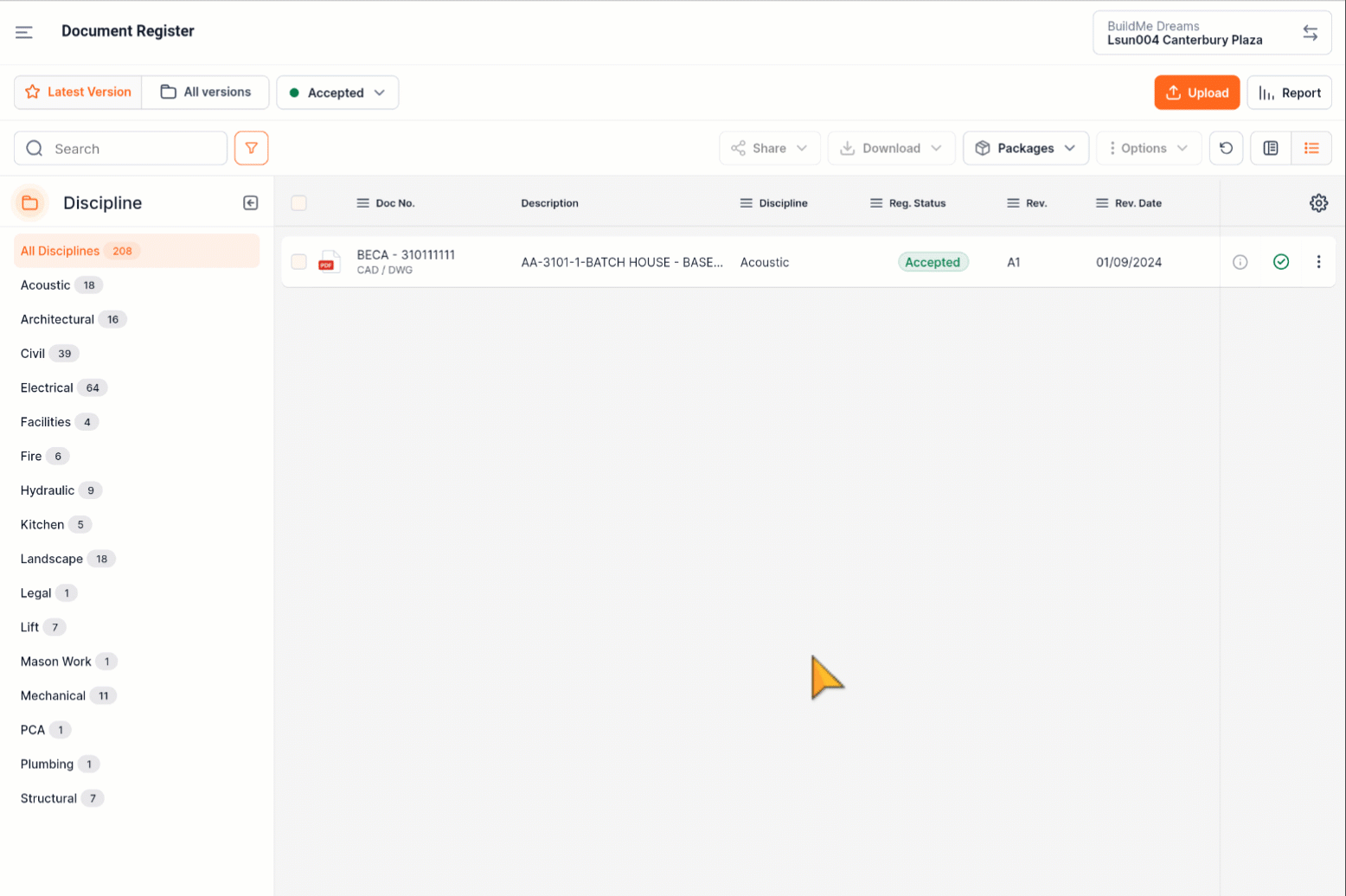

All related documents part of the location will appear.
You can also view the location of a document by changing the view, selecting the document and at the bottom you will see all the locations associated with the document.
You can also view the location of a document by changing the view, selecting the document and at the bottom you will see all the locations associated with the document.
